Evaluation Motors

back

Evaluate PCB Stator motors first-hand and experience ultra-smooth, high-efficiency performance.

HP Motors

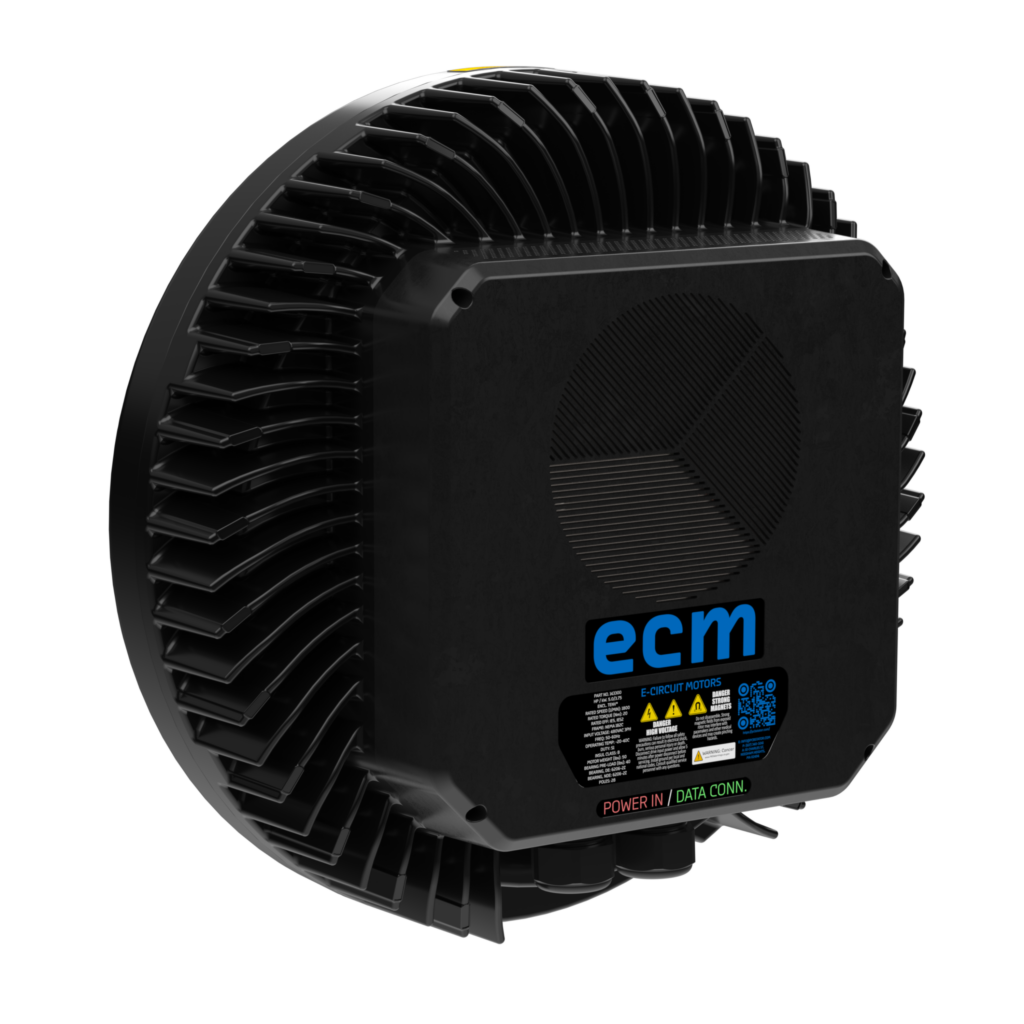

5.0 HP PCB Stator Motor​

Mechanical Power – 3770 w
Rated Speed – 1800 rpm
Torque – 20 Nm
Efficiency Class – IE5

1.0 HP PCB Stator Motor

Mechanical Power – 754 w
Rated Speed – 1800 rpm
Torque – 4 Nm
Efficiency Class – IE5

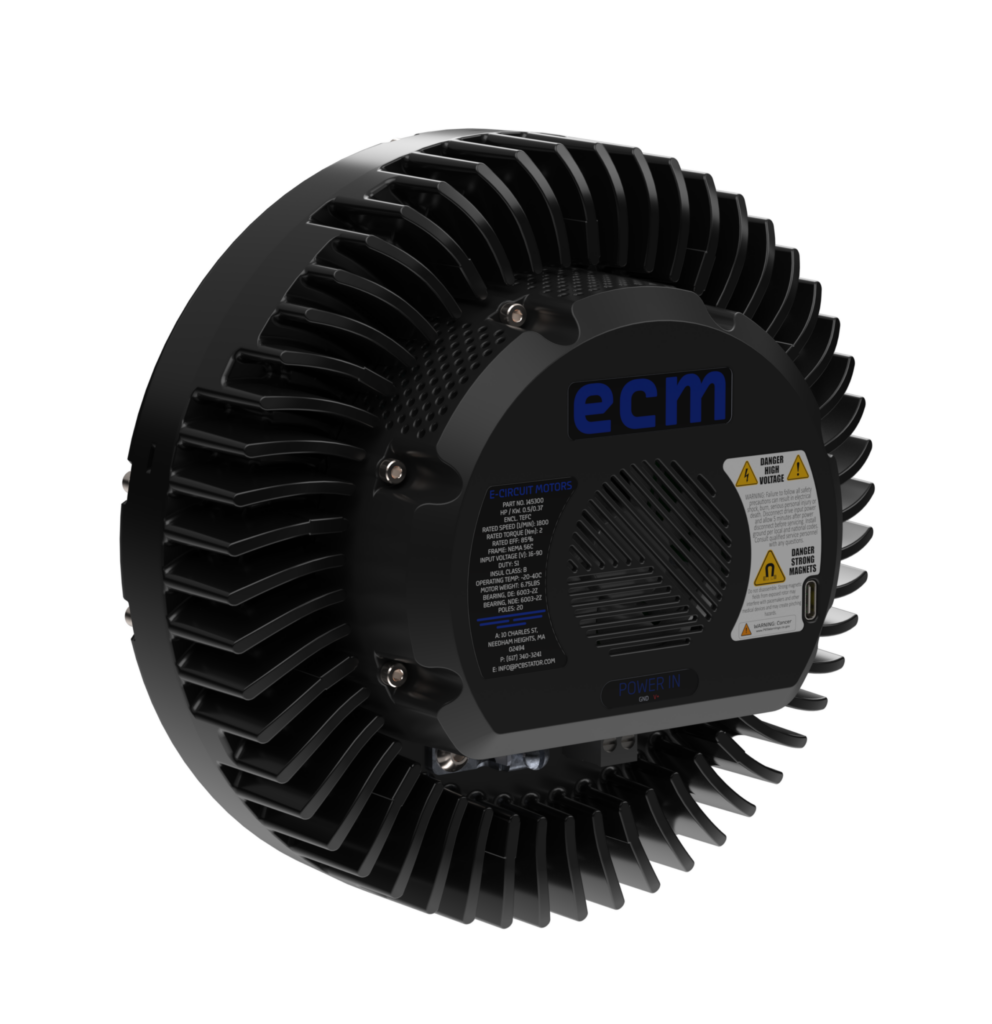

0.5 HP PCB Stator Motor​

Mechanical Power – 377 w
Rated Speed – 1800 rpm
Torque – 2 Nm
Efficiency Class – IE5

Servo Motors

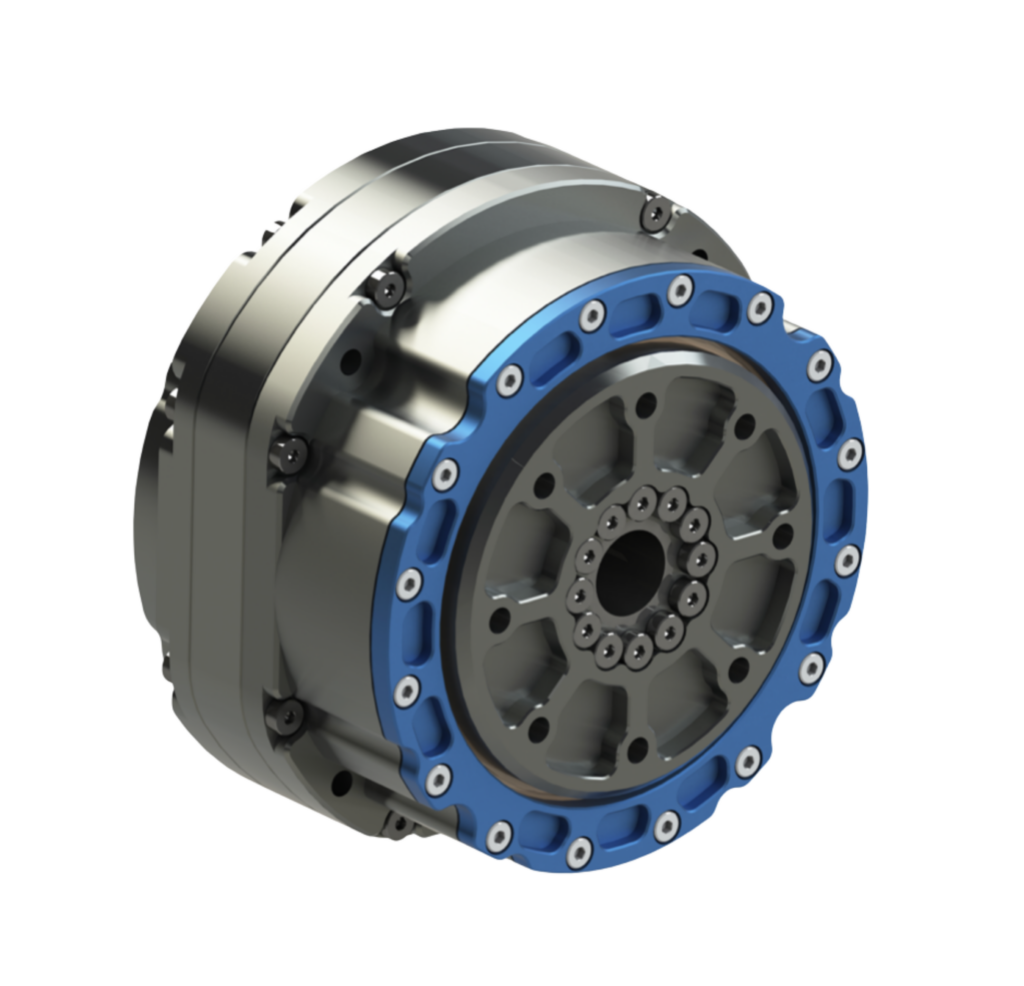

ECM50:1 PCB Stator Integrated Actuator​

Mechanical Power – 35 w
Max Speed – 110 rpm
Cont. Torque – 5.2 Nm
Max Av. Torque – 18.8 Nm
Max Torque (<1s) – 33.9 Nm Weight – 1.36lb (0.62kg) Integrated Gearbox – 50:1

2 Nm PCB Stator Servo Motor​

Mechanical Power – 62.8 w
Rated Speed – 300 rpm
Cont. Torque – 2 Nm
Max Torque (<1s) – 14.43 Nm Weight – 3lb (1.36kg)

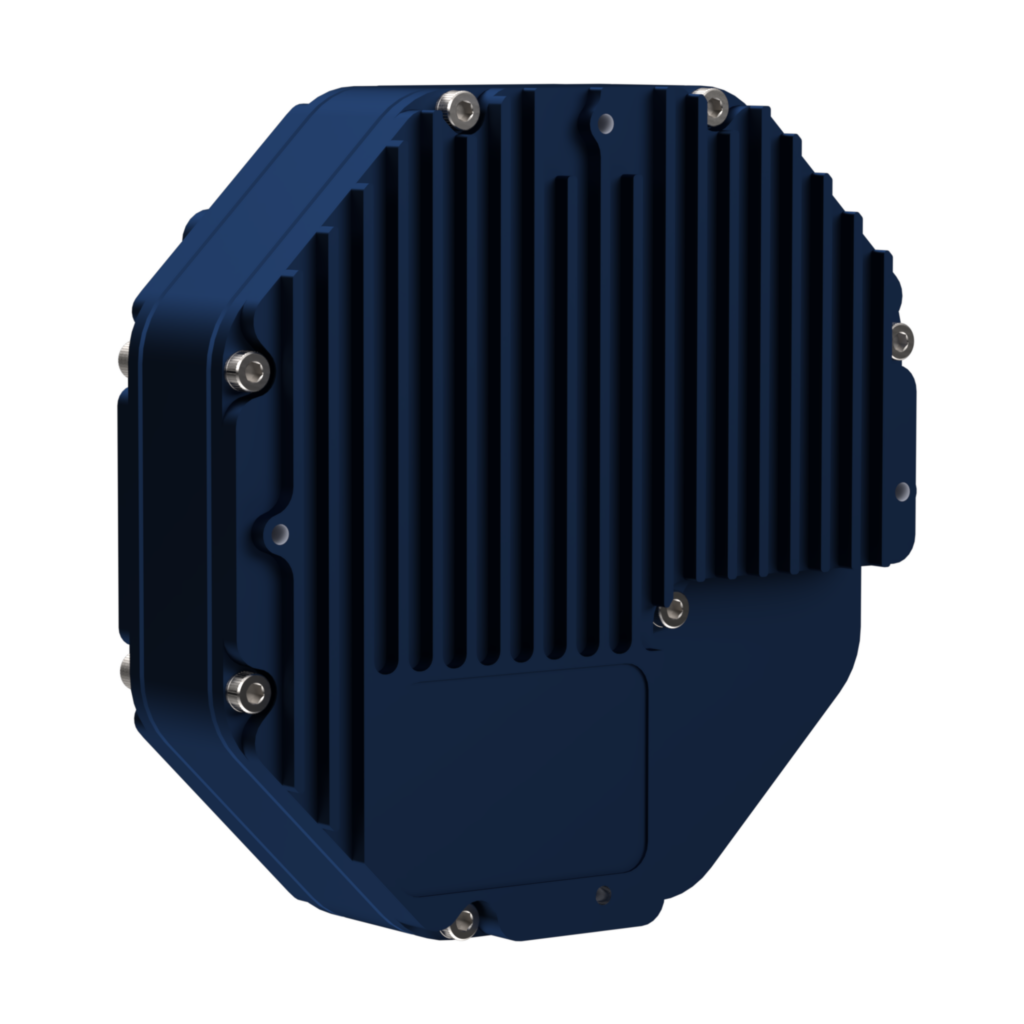

0.5 Nm PCB Stator Servo Motor

Mechanical Power – 157 w
Rated Speed – 3000 rpm
Cont. Torque – 0.5 Nm
Max Torque (<1s) – 2Nm Weight – 2.5lb (1.13kg)
