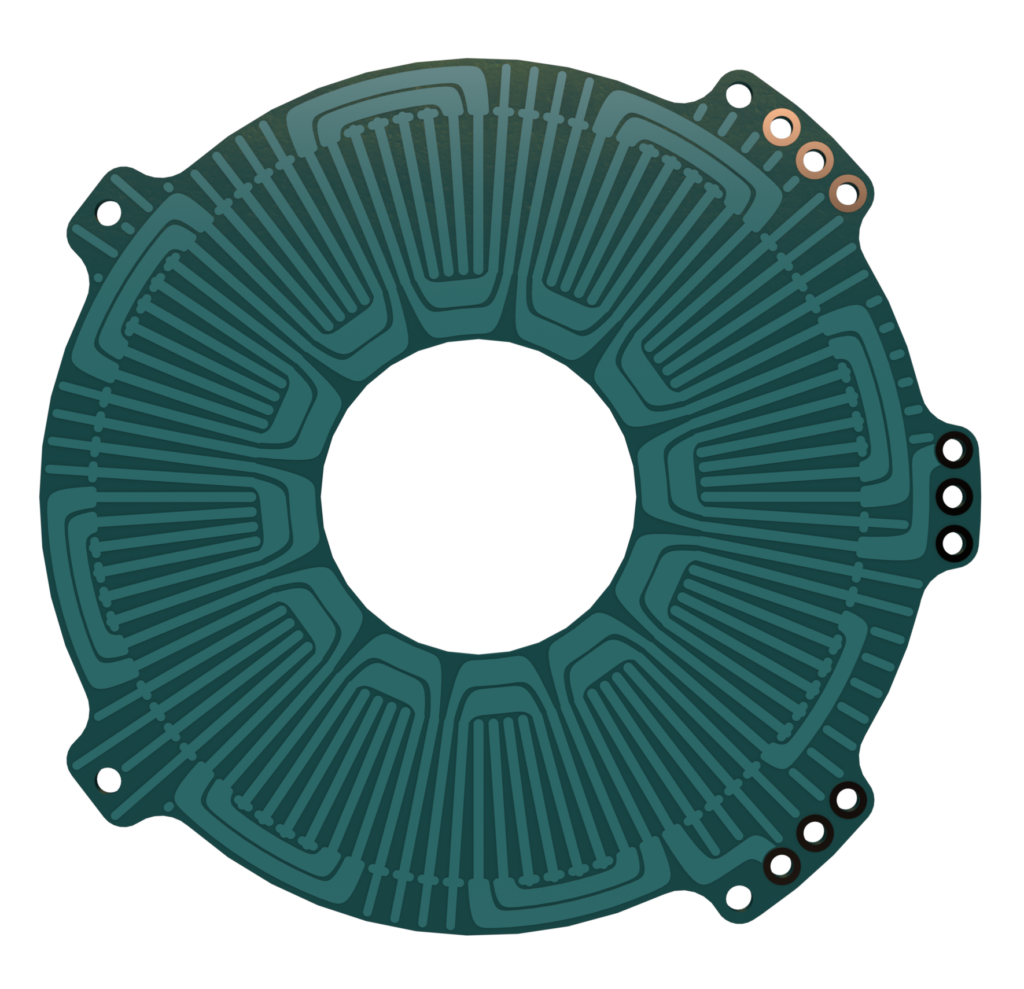

ECM50:1 PCB Stator Integrated Actuator​

Mechanical Power – 35 w
Max Speed – 110 rpm
Cont. Torque – 5.2 Nm
Max Av. Torque – 18.8 Nm
Max Torque (<1s) – 33.9 Nm Weight – 1.36lb (0.62kg) Integrated Gearbox – 50:1

back

Motor Specifications

SpecificationValue
Max Input Voltage24 V DC
Max Speed110 RPM
Max Torque (<1s)≈34 Nm (25 lb-ft.)
Max Average Torque18.8Nm (13.9lb-ft)
Cont. Torque5.2Nm (3.8 lb-ft)
Weight 0.62 kg (1.36 lbs)
Encoder Type14-bit Optical Abs./Inc.
Comm. ProtocolCAN Bus
Stator Voltage (L-N)7.58 V
Stator Phase Current6.2 Apk
Overall Length4.98 cm (1.96”)
Overall Diameter8.51 cm (3.35”)
Hollow Shaft Inner Diameter10.75 mm (0.42″)
Housing MaterialAnodized 6061 Aluminum
Number of Poles16
Bearing6001
Gearbox50:1
